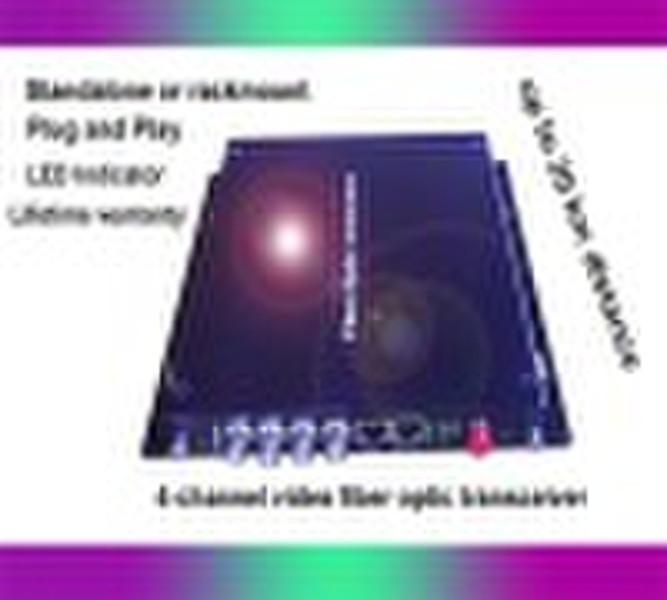

4-channel video transceiver

Product brief JYV0400T/R series 4-channel digital video fiber optical transceiver transmit 4-channel broadcast grade digital video and 1-2-channel bi-directional asynchronous data in single fiber in high quality and without distortion. JYV0400T/R series video fiber optical transceiver adopt full digital non-compress technology, accordingly, support any high resolution rate activitystill imagenon-distortion transmission; Overcome regular multi-route signal distract from AMPMFM fiber equipments JYV0400T/R series single-channel digital video fiber optical transceiver comprehensively apply in safety protectexpress-waydigital policeautomationintellectual community. The equipment can install and use instantly, support plug-in function; can flexibly configure data interface type; easily connect cables without using special tools; powerlinkvideo indication and gain control function; Optional table installment and framework installment. Product features Ø Ivideo transceiver Ø Exquisite circus, guaranteed hardware stability Ø All-digital fiber transmit platform. Ø Run instantly no need additional test. Ø Broad scale professional IC core identification Ø Fully compatibility of PAL,NTSC,SECAM Ø Avoid distract by simulation FM,PM and AM fiber optical equipments. Ø 4 layer sound wave filtration Ø All-digital non-compress,non-missing broadcast level transmit Ø Full-speed asynchronous data channel. Ø Same platform multi-functional flexible configuration. Ø advanced adaptive compatibility of PAL,NTSC,SECAM format Ø Electricity,link,data,audio dynamic indication Ø Professional ASIC design. Ø Maximum 80KM distance. Ø maximum optional alternating current 220V or direct-current +9V Ø simply install in direct-current ignore negative electrode and positive electrode Ø Wall-mounted,19-Inch 1U , rack-mounted or 4U card-inserted. Ø Customized configuration or OEM Specifications Video interface 4channel Video input-output impedance BNG 75Ω Video input-output voltage 1V PK, 1.5MAX Signal format PAL/NTSC/SECAM Video bandwidth 8MHZ Digital bit width 8BIT Differential gain <1% Differential phase <0.6% Vertical slope <0.5% CLDI 10ns CLGI ±10% Weighted signal-to-noise ratio 67DB Data interface 1-4channel asynchronous RS-232/485/422 Physical interface Industrial standard port Work mode Full-duplex or duplex Interface type RS-232/485/422,Manchester RS232 speed 0-115.2Kbps RS-422/485 speed 0-115.2Kbps RS-422/485 distance 0-1200 meter RS-422/485 protocol Transparent RS-485/422 protocol Bit error rate 10-9 Fiber interface Physical interface FC/PC,SC/PC Transmit distance MM 0-3KM SM 0-25km,0-60km,0-80km Operating environment Operating temp -30C +75C Storage temp -45C +85C Component temp 0 95% un-condensation Power supply AC220V, DC +12V Construction Aluminum Finish Paint MTBF > 100,000 hours Shape 242×211×24.1mm weight 1.8kg Video Transceiver Digital Transceiver JHY Fiber Optics Multi-Mode Fiber CCTV Networks Fiber Optical Fiber Fiber Network Optical Receiver Optical Signals Fiber Cables Signal Transmission System Monitoring Systems Fiber Opticconverter
